Glass plates that will never let you down. For decades. Under the toughest conditions.

We have a complete range of glass plates, which are used worldwide for safe process observation. Our VETROLUX® glass plates meet the highest quality standards – according to our quality commitment “Swiss Excellence – Since 1936”.

Glass plates are a safety-relevant component of most sight glasses. The use and replacement of glass plates are regulated in the relevant DIN standards.

The choice of a high-quality glass plate ensures work and process safety. When choosing a VETROLUX® glass plate, the traceability of the material is guaranteed and the glass plate is supplied with compliant certificates.

Requirements

Our portfolio consists of two product series that cover all common requirements. Here is an overview of the possibilities:

Versions/ product series:

VETROLUX® C: Circular glass plates
VETROLUX® L: Oblong glass plates
Sizes/ application:

Application: For all sight glasses (incl. wipers and motorized wipers)
Nominal sizes: DN 25 to DN 200
Dimensions of circular glass plates (diameter x thickness): From ⌀45 x 10 mm to ⌀265 x 30 mm
Dimensions of oblong glass plates (length x width): From 140 x 17 mm to 745 x 70 mm
Maximum operating pressure: From 2 bar to 50 bar and vacuum
Maximum operating temperature: 150°C or 280°C (depending on the glass plate), without limitation in the low temperature range
Materials/ product types:

Materials: Soda lime/ DIN 8902 (up to 150°C), borosilicate/ DIN 7080 (up to 280°C) (others on request)
Central bore holes: With or without hole for wiper
Special tests:

Hydraulic pressure test
Mechanical impact test

Do you have further requirements? Please contact us at any time. We will be happy to find a solution together.

Why Max Müller?

Safety. In order to ensure the highest quality and full traceability, all our glass plates are 100% made in Germany (out of German raw material). Therefore, our products will never let you down.

Reliability. Founded in 1936, MAX MÜLLER has grown into one of the world‘s leading manufacturers of process observation equipment. Therefore, we will always be there for you.

Company profile/ overview

Product inquiry

We look forward to hearing from you. You can get in touch with us as follows:

Contact/ locations

Contact form

Data sheets/ downloads

		Data sheet
Circular glass plates	VETROLUX® C
Oblong glass plates	VETROLUX® L	WIP

Add-ons

We have the following add-ons for glass plates:

Wipers and motorized wipers

Central and lateral wipers for sight glasses and metal-fused sight glasses, manual or pneumatic, up to 16 bar and with vacuum

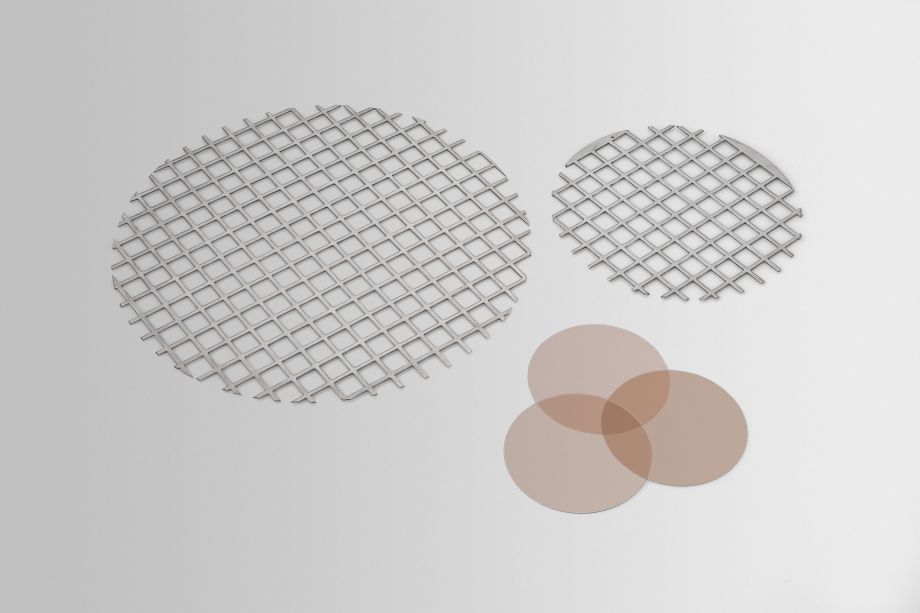

Add-ons for sight glasses

To extend the range of applications: Wipers and motorized wipers, spraying devices, protective grilles, mica plates, etc.
